DICA - CHAPTER -1 TOPIC - 2 CMOS LOGIC

CMOS LOGIC

The basic building blocks in CMOS logic circuits are MOS transistors.

1.   CMOS Logic Levels

Abstract logic elements process binary digits, 0 and 1. But the real logic circuits process electrical signals such as voltage levels. In any logic circuit, there is a range of voltages (or other circuit conditions) that is interpreted as logic 0, and another, nonoverlapping range that is interpreted as logic 1.

A typical CMOS logic circuit operates from a 5-volt power supply. Such a circuit may interpret any voltage in the range 0–1.5 V as logic 0 (LOW), and in the range 3.5–5.0 V as a logic 1 (HIGH) as shown in fig.1. Voltages in the intermediate range are not expected to occur except during signal transitions, and yield undefined logic values (i.e., a circuit may interpret them as either 0 or 1). CMOS circuits using other power supply voltages, such as 3.3 or 2.7 volts, partition the voltage range similarly.

2.   MOS Transistors

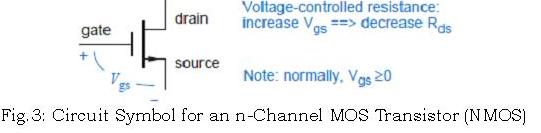

A MOS transistor can be modeled as a 3-terminal device that acts like a voltage controlled resistance, as shown in fig.2. An input voltage applied to one terminal controls the resistance between the remaining two terminals. In digital logic applications, a MOS transistor is operated so its resistance is always either very high (and the transistor is “off”) or very low (and the transistor is “on”).

Types of MOS transistors

(a)  n-channel MOS

(b)  p-channel MOS

The names refer to the type of semiconductor material used for the resistance-controlled terminals. The circuit symbol for an n-channel MOS (NMOS) transistor is shown in Fig.3. The terminals are called gate, source, and drain. From the orientation of the circuit symbol, the drain is normally at a higher voltage than the source. The voltage from gate to source (Vgs) in an NMOS transistor is normally zero or positive. If Vgs = 0, then the resistance from drain to source (Rds) is very high, on the order of a megohm (106 ohms) or more. As we increase Vgs (i.e., increase the voltage on the gate), Rds decreases to a very low value, 10 ohms or less in some devices.

The circuit symbol for a p-channel MOS (PMOS) transistor is shown in Fig.4. Operation is analogous to that of an NMOS transistor, except that the source is normally at a higher voltage than the drain, and Vgs is normally zero or negative. If Vgs is zero, then the resistance from source to drain (Rds) is very high. As we algebraically decrease Vgs (i.e., decrease the voltage on the gate), Rds decreases to a very low value.

The gate of a MOS transistor has very high impedance i.e., the gate is separated from the source and the drain by an insulating material with a very high resistance. However, the gate voltage creates an electric field that enhances or retards the flow of current between source and drain, which is the “field effect” in the “MOSFET” name. Regardless of gate voltage, almost no current flows from the gate to source, or from the gate to drain for that matter. The resistance between the gate and the other terminals of the device is extremely high, around a mega ohm. The small amount of current that flows across this resistance is very small, i.e., <1µA called as leakage current.

The MOS transistor symbol itself shows that there is no connection between the gate and the other two terminals of the device. However, the gate of a MOS transistor is capacitively coupled to the source and drain. In high-speed circuits, the power needed to charge and discharge this capacitance on each input-signal transition accounts for a nontrivial portion of a circuit’s power consumption.

3.   Basic CMOS Inverter Circuit

NMOS and PMOS transistors are used together in a complementary way to form CMOS logic. The simplest CMOS circuit, a logic inverter, requires only one of each type of transistor, connected as shown in Fig.5 (a). The power supply voltage, VDD, ranges from 2V to 6V, and is most often set at 5.0 V for compatibility with TTL circuits.

Ideally, the functional behavior of the CMOS inverter circuit can be characterized by just two cases tabulated in Fig.5 (b).

1.   When VIN is 0.0 V(L), the bottom, n-channel transistor Q1 is off, since its Vgs is 0, but the top, p-channel transistor Q2 is on, since its Vgs is a large negative value (-5.0 V). Hence Q2 presents only a small resistance between the power supply terminal (VDD, +5.0 V) and the output terminal (VOUT), and the output voltage is 5.0 V.

2.   When VIN is 5.0 V (H), Q1 is on, since its Vgs is a large positive value (+5.0 V), but Q2 is off, since its Vgs is 0. Thus, Q1 presents a small resistance between the output terminal and ground, and the output voltage is 0V.

As shown in Fig.6 (a), the n-channel (bottom) transistor is modeled by a normally-open switch and the p-channel (top) transistor by a normally-closed switch. Applying a HIGH voltage changes each switch to the opposite of its normal state, as shown in Fig.6 (b).

 The Fig.7 shows the different symbols used for the p- and n-channel transistors to reflect their logical behavior. The n-channel transistor (Q1) is switched “on,” and current flows between source and drain, when a HIGH voltage is applied to its gate. The p-channel transistor (Q2) has the opposite behavior, i.e., it is “on” when a LOW voltage is applied; the inversion bubble on its gate indicates this inverting behavior.

4.   CMOS NAND and NOR Gates

Both NAND and NOR gates can be constructed using CMOS. A k-input gate uses k p-channel and k n-channel transistors. Fig.8 shows a 2-input CMOS NAND gate, where if either input is LOW, the output Z has a low-impedance connection to VDD through the corresponding “on” p-channel transistor, and the path to ground is blocked by the corresponding “off” n-channel transistor. If both inputs are HIGH, the path to VDD is blocked, and Z has a low-impedance connection to ground. Fig.9 shows the switch model for the NAND gate’s operation.

Fig.10 shows a CMOS 2-input NOR gate. If both inputs are LOW, the output Z has a low-impedance connection to VDD through the “on” p-channel transistors, and the path to ground is blocked by the “off” n-channel transistors. If either input is HIGH, the path to VDD is blocked, and Z has a low-impedance connection to ground.

5.   Fan-In

The number of inputs that a gate can have in a particular logic family is called the logic family’s fan-in. CMOS gates with more than two inputs can be obtained by extending series-parallel designs on Figures 8 and 10 in the obvious manner.

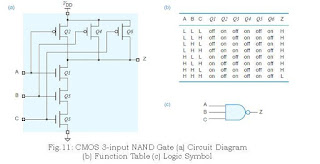

Consider a 3-input CMOS NAND gate as shown in Fig.11. In principle, we can design a CMOS NAND or NOR gate with a very large number of inputs. But practically, the additive “on” resistance of series transistors limits the fan-in of CMOS gates, typically to 4 for NOR gates and 6 for NAND gates.

As the number of inputs is increased, CMOS gate designers may compensate by increasing the size of the series transistors to reduce their resistance and the corresponding switching delay. But at some point this becomes inefficient or impractical. Gates with a large number of inputs can be made faster and smaller by cascading gates with fewer inputs.

Eg. Consider the logical structure of an 8-input CMOS NAND gate as shown in Fig.12, the total delay through a 4-input NAND, a 2-input NOR, and an inverter is typically less than the delay of a one-level 8-input NAND circuit.

6.   Noninverting Gates

In CMOS and most other logic families, the simplest gates are inverters, and the next simplest are NAND gates and NOR gates. A logical inversion comes “for free,” and it typically is not possible to design a noninverting gate with a smaller number of transistors than an inverting one.

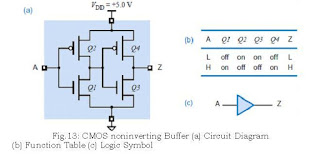

CMOS noninverting buffers and AND and OR gates are obtained by connecting an inverter to the output of the corresponding inverting gate. Thus, Fig.13 shows a noninverting buffer and Fig.14 shows an AND gate.

7. CMOS AND-OR-INVERT and OR-AND-INVERT Gates

CMOS circuits can perform two levels of logic with just a single “level” of transistors. A two-wide, two-input CMOS AND-OR-INVERT (AOI) gate and its function table are shown in fig.15 (a) and (b). The corresponding logic diagram for this function using AND and NOR gates is shown in Fig.16.

Transistors can be added to or removed from this circuit to obtain an AOI function with a different number of ANDs or a different number of inputs per AND.

The contents of each of the Q1–Q8 columns in Fig.15(b) depends only on the input signal connected to the corresponding transistor’s gate. The last column is constructed by examining each input combination and determining whether Z is connected to VDD or ground by “on” transistors for that input combination. Z is never connected to both VDD and ground for any input combination; in such a case the output would be a non-logic value some- where between LOW and HIGH, and the output structure would consume excessive power due to the low-impedance connection between VDD and ground.

A circuit can also be designed to perform an OR-AND-INVERT function. A two-wide, two-input CMOS OR-AND-INVERT (OAI) gate and its function table is as shown in fig.17 (a) and (b), the values in each column are determined just as we did for the CMOS AOI gate. The logic diagram for the OAI function using OR and NAND gates is shown in Fig.18.

The speed and other electrical characteristics of a CMOS AOI or OAI gate are quite comparable to those of a single CMOS NAND or NOR gate, i.e., they can perform two levels of logic (AND-OR or OR-AND) with just one level of delay. Most digital designers use AOI gates in their discrete designs. Also, CMOS VLSI devices often use these gates internally, since many HDL synthesis tools can automatically convert AND/OR logic into AOI gates when appropriate.

CMOS/BiCMOS ULSI
